Maintenancen Free Auto Battery

Automotive Battery
Automotive Battery
Automotive Battery
Automotive Battery
Automotive Battery
Product Specifications
Sealed Maintenance Free Automotive Starter Batteries ---- 12 Volt series

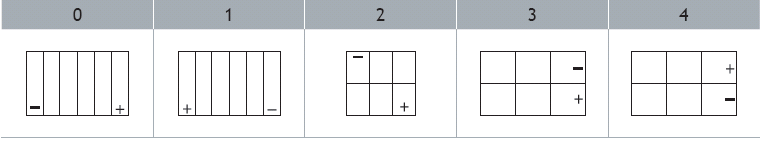

 No. Volt Capacity C20 (Ah) Model Battery Dimension (mm) Reserved Capacity              (Min.) CCA (A)             -18 C   EN/DIN Cell lay-out Terminal
JIS Standard DIN Standard
New Model Old Model L W H T. H
AJMF1 12 32 36B20R NS40MF 196 130 190 190 52 190 1 B
AJMF2 12 35 38B20R NS40ZMF 53522MF 198 128 201 220 52 274/150 1 B
AJMF3 12 35 38B20L NS40ZLMF 53520MF 198 128 201 220 52 274/150 0 B
AJMF4 12 40 32C24R N40MF ┄┄ 240 132 200 220 62 238 1 A
AJMF5 12 40 32C24L N40LMF ┄┄ 240 132 200 220 62 238 0 A
AJMF6 12 45 46B24R NS60MF 54551MF 240 132 200 220 71 325/220 1 B
AJMF7 12 45 46B24R(S) NS60 (S)MF 54524MF 240 132 200 220 71 325/220 1 A
AJMF8 12 45 46B24L NS60LMF 54584MF 240 132 200 220 71 325/220 0 B
AJMF9 12 45 46B24L(S) NS60L (S)MF 54523MF 240 132 200 220 71 325/220 0 A
AJMF10 12 50 48D26R N50MF ┄┄ 260 170 200 220 80 330 1 A
AJMF11 12 50 48D26L N50LMF ┄┄ 260 170 200 220 80 330 0 A
AJMF12 12 60 55D26R N50ZMF ┄┄ 260 170 200 220 100 390 1 A
AJMF13 12 60 55D26L N50ZLMF ┄┄ 260 170 200 220 100 390 0 A
AJMF14 12 60 ┄┄ ┄┄ 56049MF 258 173 200 220 100 250 1 A
AJMF15 12 60 ┄┄ ┄┄ 56048MF 258 173 200 220 100 250 0 A
AJMF16 12 60 55D23R ┄┄ 56069MF 230 171 204 225 100 390/250 1 A
AJMF17 12 60 55D23L ┄┄ 56068MF 230 171 204 225 100 390/250 0 A
AJMF18 12 65 65D26R NS70MF ┄┄ 260 170 200 220 110 413 1 A
AJMF19 12 65 65D26L NS70LMF ┄┄ 260 170 200 220 110 413 0 A
AJMF20 12 70 80D26R NX110-5MF 57029MF 260 170 200 220 113 430/310 1 A
AJMF21 12 70 80D26L NX110-5LMF 57024MF 260 170 200 220 113 430/310 0 A
AJMF22 12 70 65D31R N70MF ┄┄ 305 170 202 225 113 430 1 A
AJMF23 12 70 65D31L N70LMF ┄┄ 305 170 202 225 113 430 0 A
AJMF24 12 75 75D31R N70ZMF 57513MF 305 170 202 225 130 450/330 1 A
AJMF25 12 75 75D31L N70ZLMF 57512MF 305 170 202 225 130 450/330 0 A
AJMF26 12 80 95D31R NX120-7MF ┄┄ 305 170 202 225 140 480 1 A
AJMF27 12 80 95D31L NX120-7LMF ┄┄ 305 170 202 225 140 480 0 A
AJMF28 12 85 ┄┄ N85 58034MF 305 170 202 225 150 380 0 A
AJMF29 12 85 ┄┄ N85 58521/13MF 305 170 202 225 150 380 1 A
AJMF30 12 100 ┄┄ N100MF 410 172 205 225 180 440 1 A
AJMF31 12 120 115F51 N120MF 62034MF 505 180 210 235 230 638 3 A
AJMF32 12 135 ┄┄ N135MF 63511MF 505 180 210 235 255 470 3 A
AJMF33 12 140 145F51 NS150MF 64020MF 505 180 210 235 270 699/520 3 A
AJMF34 12 143 ┄┄ ┄┄ 64317MF 507 221 212 235 294 540 3 A
AJMF35 12 150 145G51 N150MF ┄┄ 507 221 212 235 294 754 3 A
AJMF36 12 165 165G51 N165MF ┄┄ 507 221 212 235 330 820 3 A
AJMF37 12 170 ┄┄ ┄┄ 67018MF 507 221 212 235 350 600 3 A
AJMF38 12 180 195G51 N180MF 68021MF 507 265 212 235 390 885/570 3 A
AJMF39 12 180 ┄┄ ┄┄ 68032MF 507 221 212 235 350 600 3 A
AJMF40 12 200 190H52 N200MF 70027MF 514 265 212 235 430 924/630 3 A
AJMF41 12 210 190H52 N210MF 514 265 212 235 430 924/630 3 A
AJMF42 12 220 ┄┄ N220MF ┄┄ 514 265 212 235 450 1000 3 A
